Error Codes List for KuKirin Electric Scooter

Published: Wednesday, October 30, 2024

Encountering error codes on your KuKirin scooter can be a hassle, but understanding them is key to keeping your ride smooth. These codes help you pinpoint issues, from motor malfunctions to battery troubles. In this guide, we’ll break down the most common error codes you might see and offer straightforward solutions for each. Whether you'r a seasoned rider or just starting out, this info will help you tackle problems quickly and keep your scooter in top shape.

In This Article:

  • Error Codes-KuKirinG2 Master/KuKirinG3 Pro/ KuKirinG4 Max

  • Error Codes-KuKirin G2 Pro/ KuKirin G2 Max

  • Error Codes- KuKirin G2/KuKirin G3/KuKirin G4

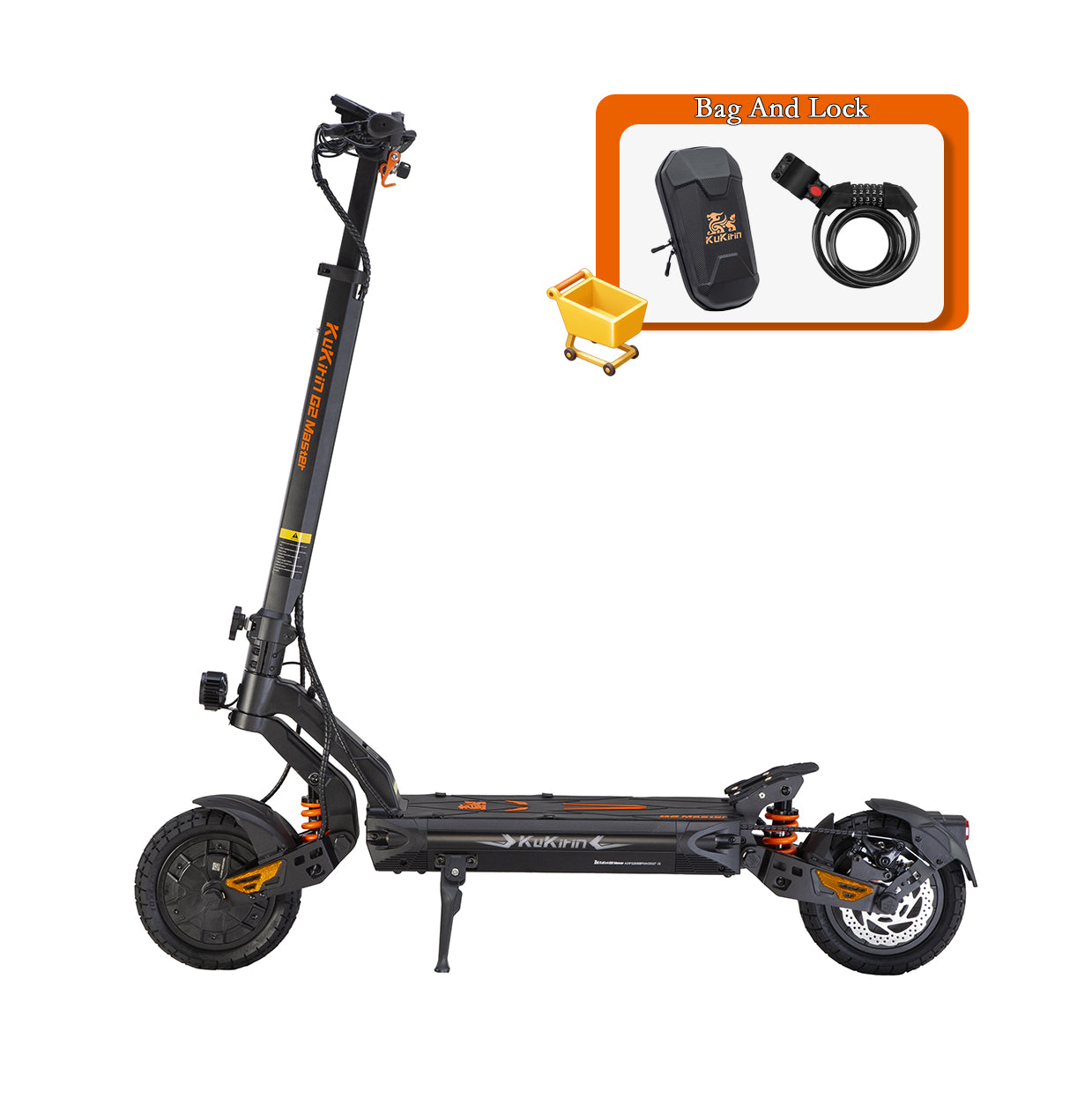

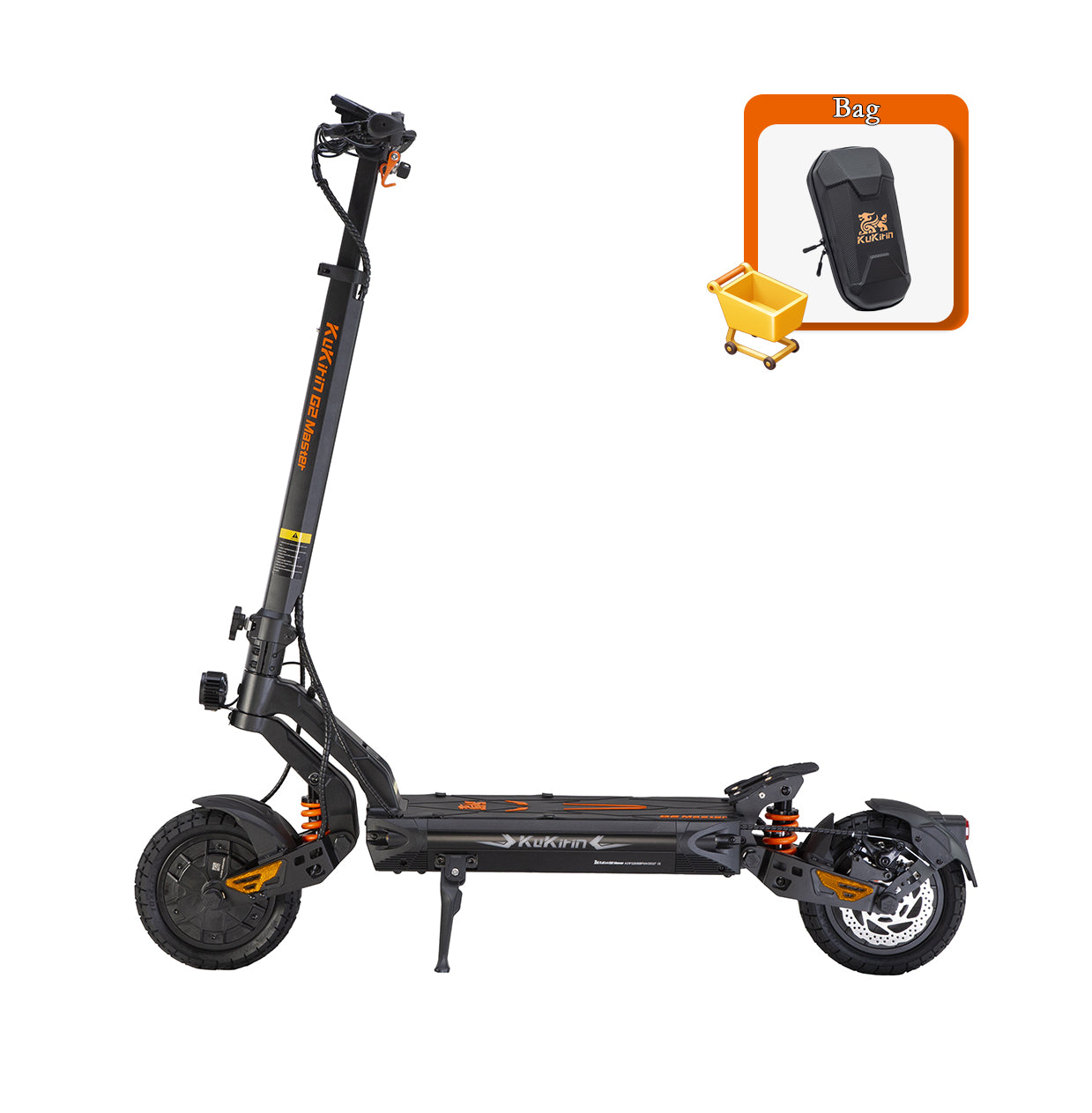

KuKirin (Kugoo Kirin) G2 Master Electric Scooter

€849,00
€1.499,00

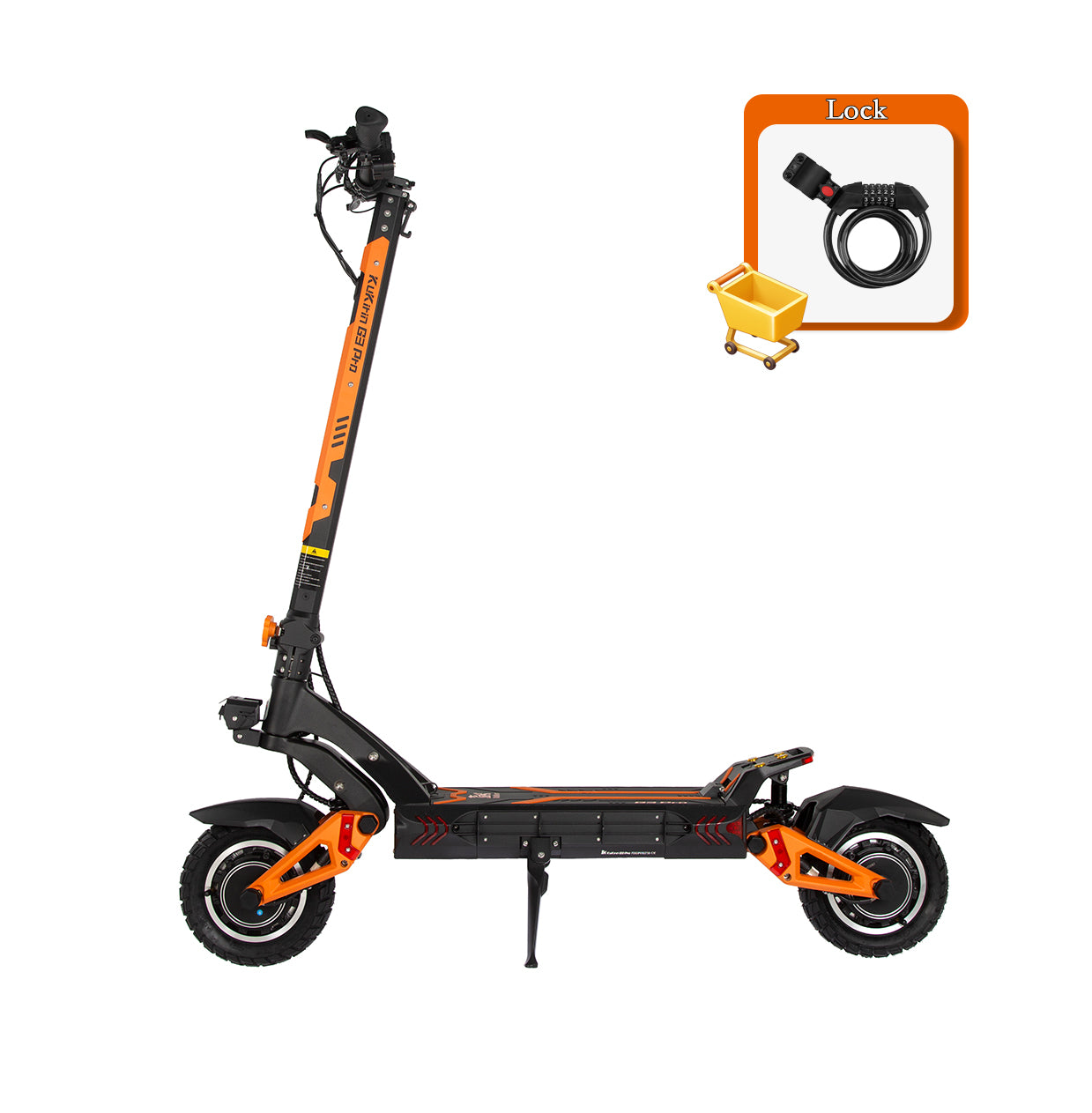

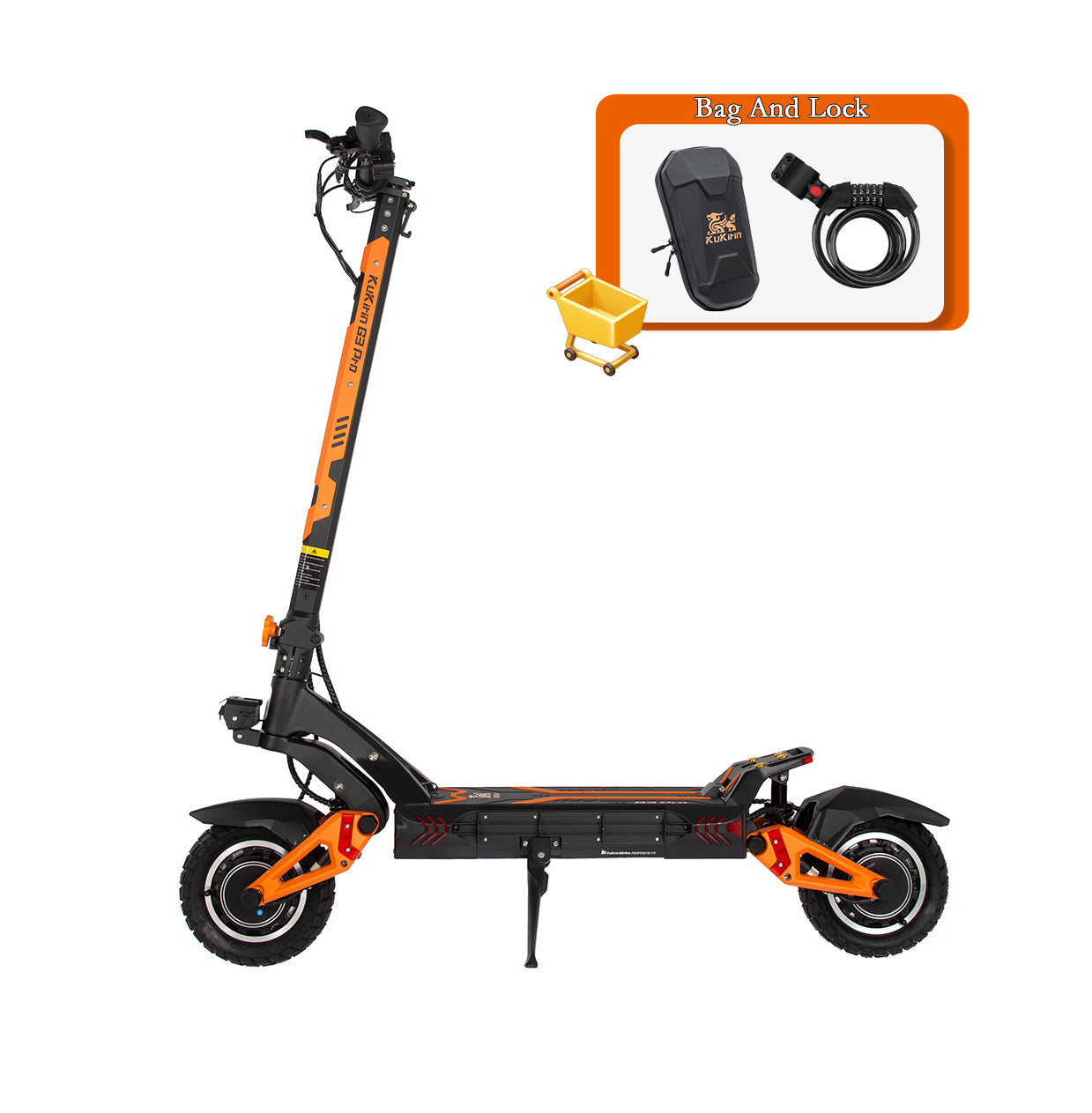

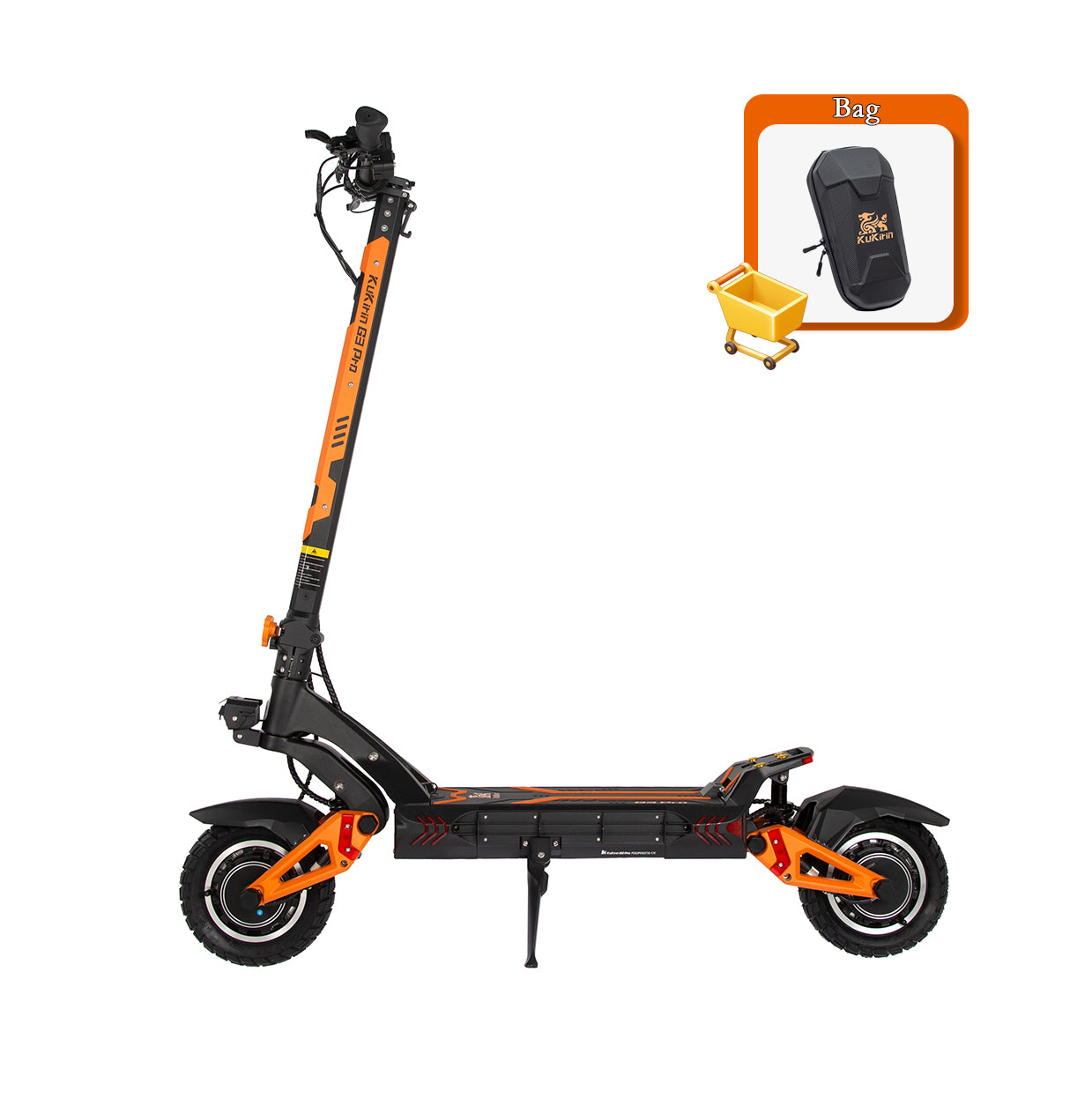

KuKirin (Kugoo Kirin) G3 Pro Off-Road Electric Scooter

€1.199,00
€2.199,00

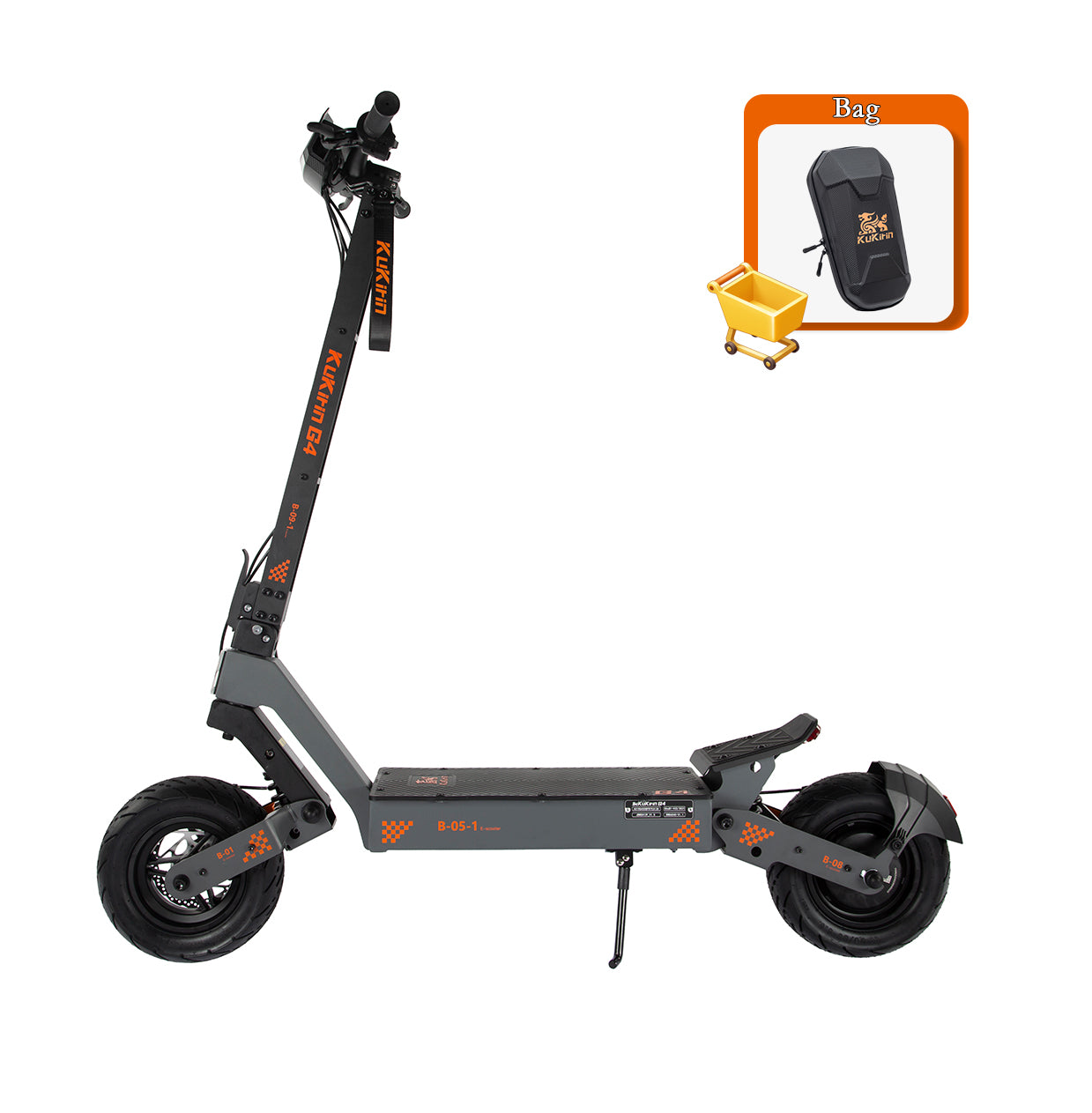

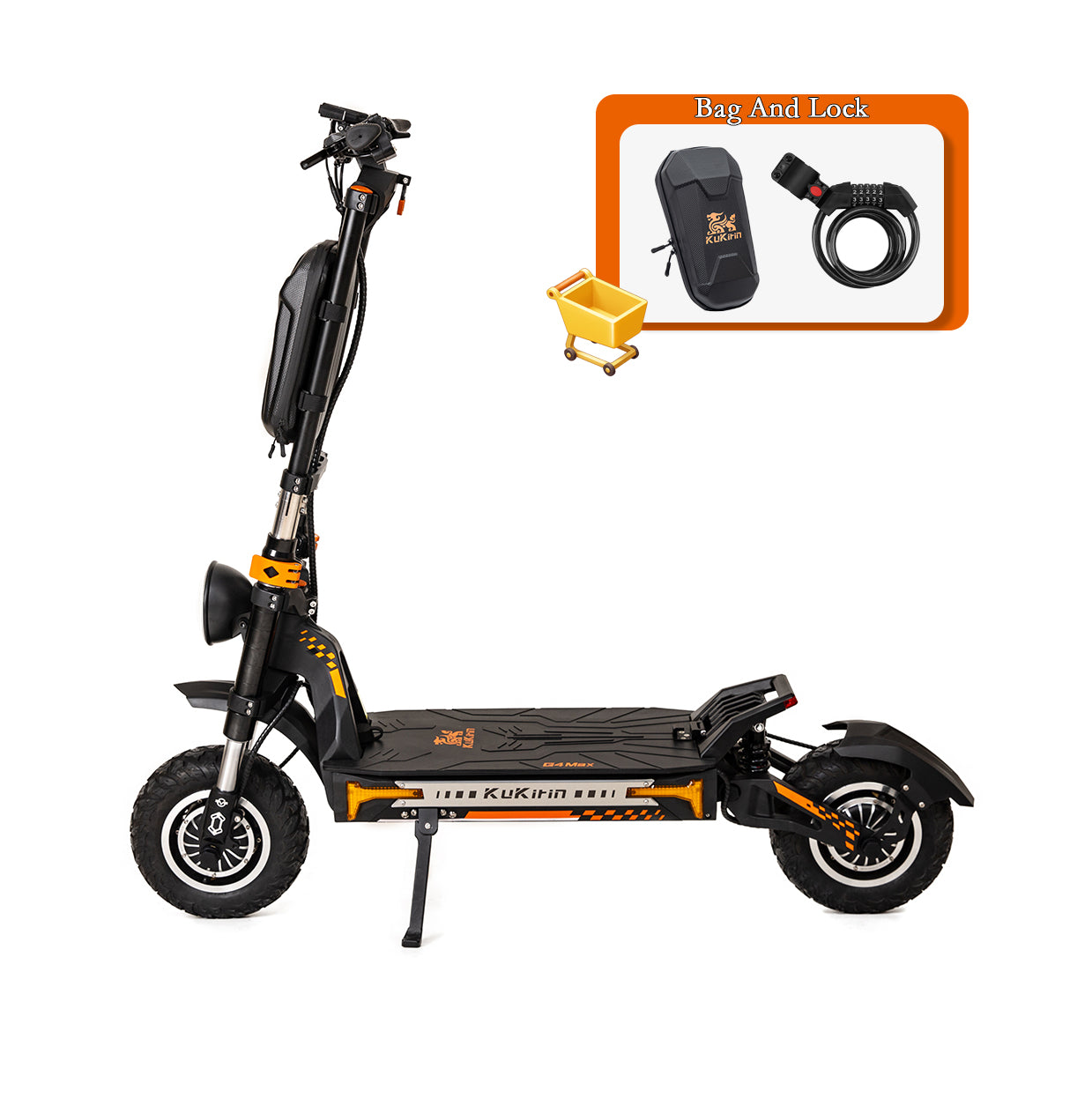

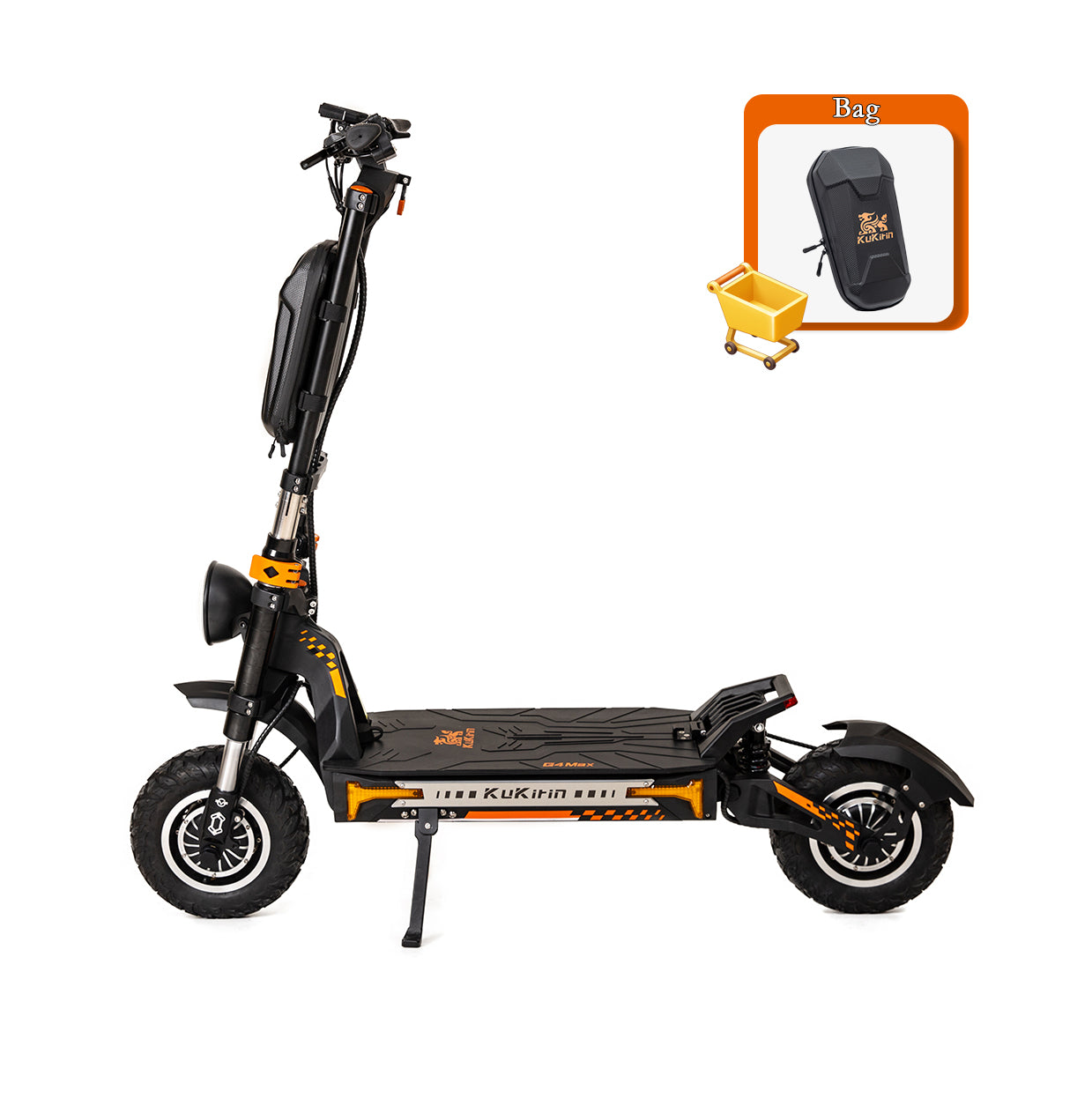

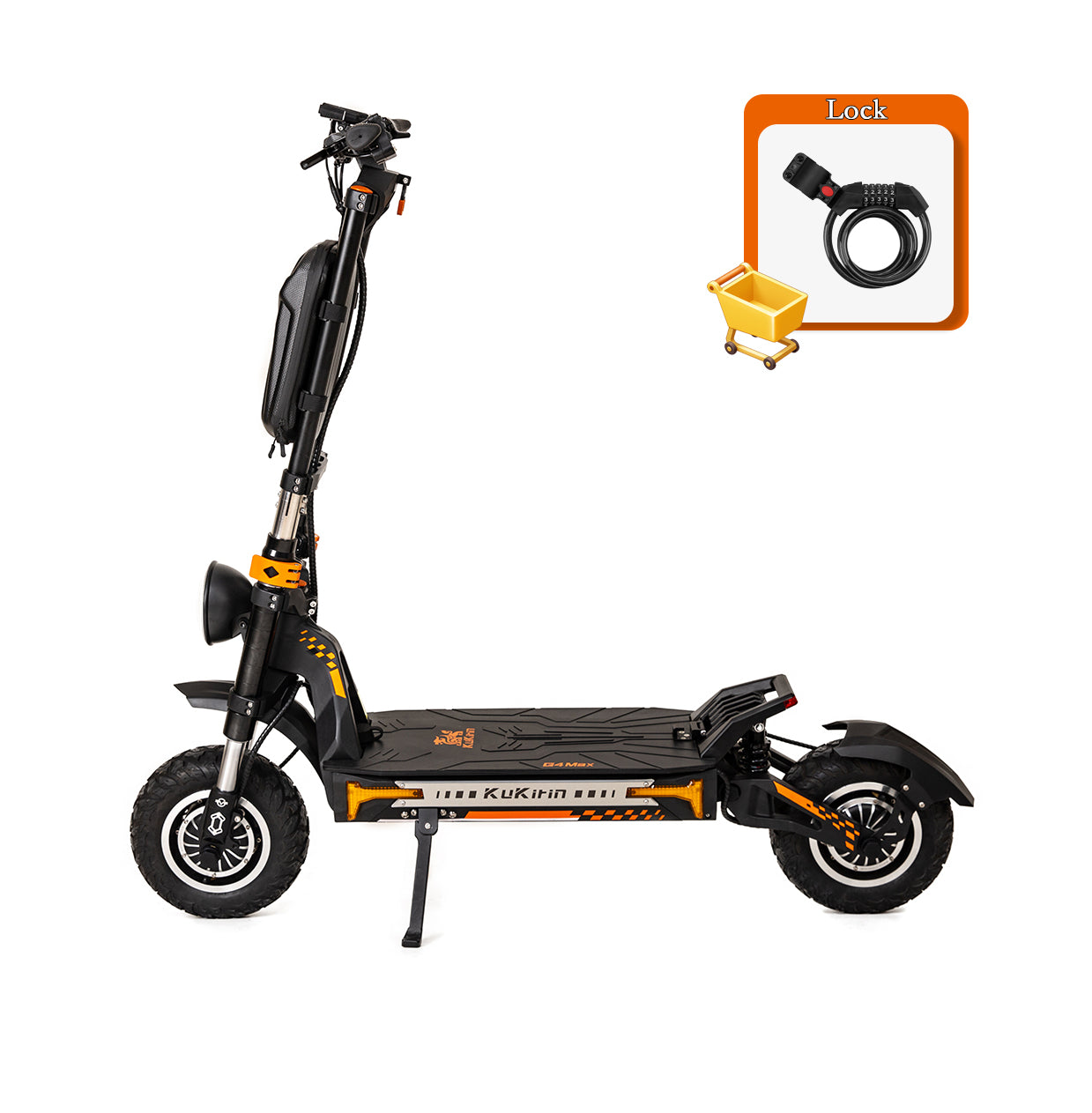

KuKirin (Kugoo Kirin) G4 Max Electric Scooter

€2.219,00
€3.599,00

Error Codes-KuKirinG2 Master/KuKirinG3 Pro/ KuKirinG4 Max

E-001: Rear Motor Hall Fault

  • Swap rear and front motor plugs.
  • If E-011 occurs, replace the rear motor.
  • If not, replace the controller.

E-002: Throttle Fault

  • Check for bent pins in the throttle waterproof connector.
  • If pins are fine, replace the throttle.
  • If E-002 persists, replace the display.

E-003: Rear Controller Fault

  • Indicates either overcurrent protection or MOS short circuit.
  • If persistent, replace the controller.
  • If transient, it’s overcurrent protection.

E-005: Rear Drive Battery Under Voltage Fault

  • If battery voltage is below 41V, charge it.
  • If it’s much higher but still shows E-005, replace the battery.

E-006: Instrument Reception Fault

  • Check for bent pins in the waterproof connectors.
  • If fine, replace the instrument.
  • If E-006 continues, replace the controller.

E-007: Instrument Sending Fault

  • Similar steps as E-006.

E-009: Rear Controller Over Temperature Protection

  • Wait for the controller to cool down.

E-011: Front Motor Hall Fault

  • Swap front and rear motor plugs.
  • If E-001 occurs, replace the front motor.
  • If not, replace the controller.

E-013: Front Controller Fault

  • Same logic as E-003 regarding overcurrent and MOS issues.

E-015: Front Drive Battery Under Voltage Fault

  • Similar steps as E-005.

E-017: Front Controller Reception Fault

  • Replace the controller.

E-019: Front Controller Over Temperature Protection

  • Wait for the controller to cool down.

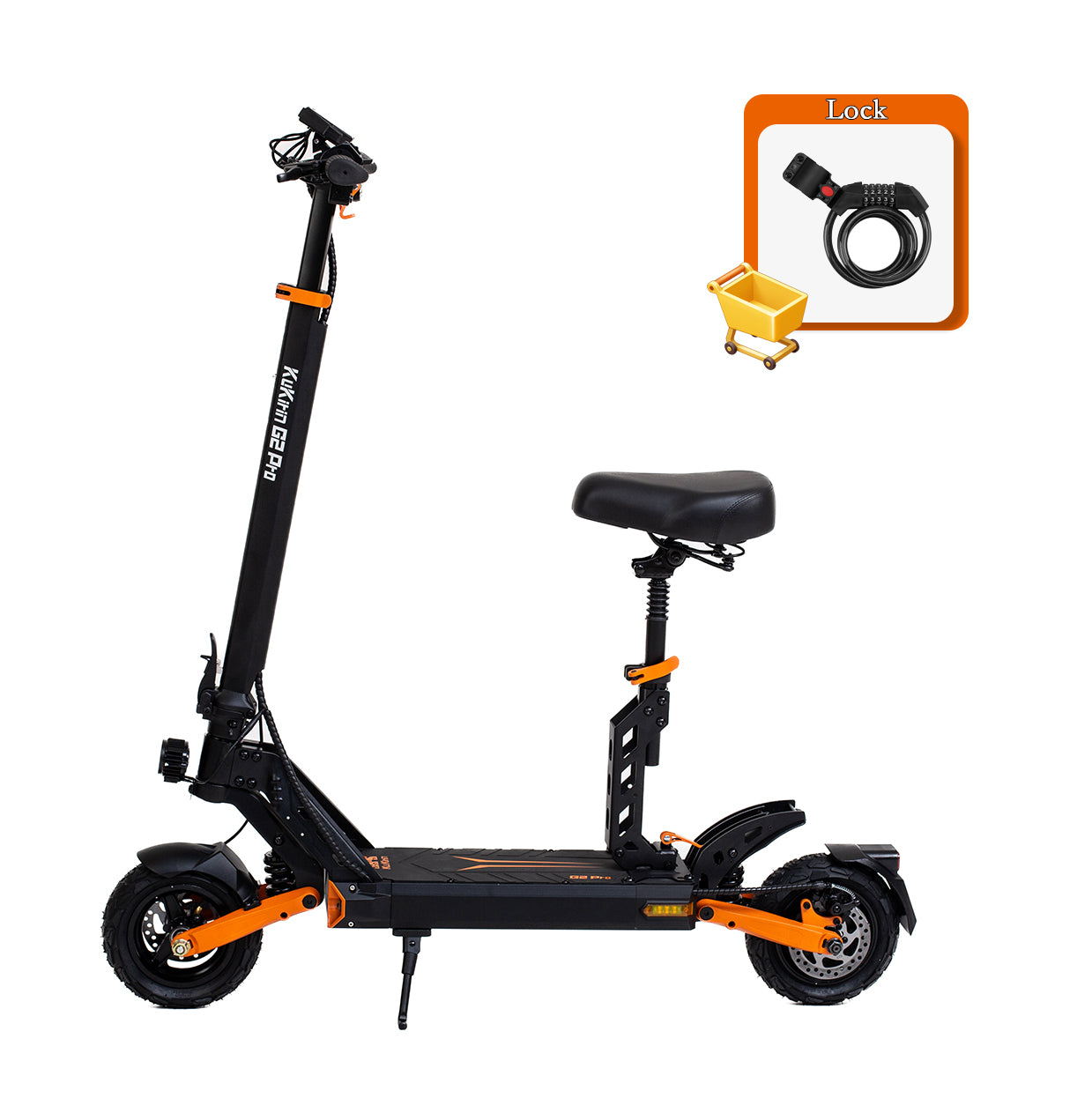

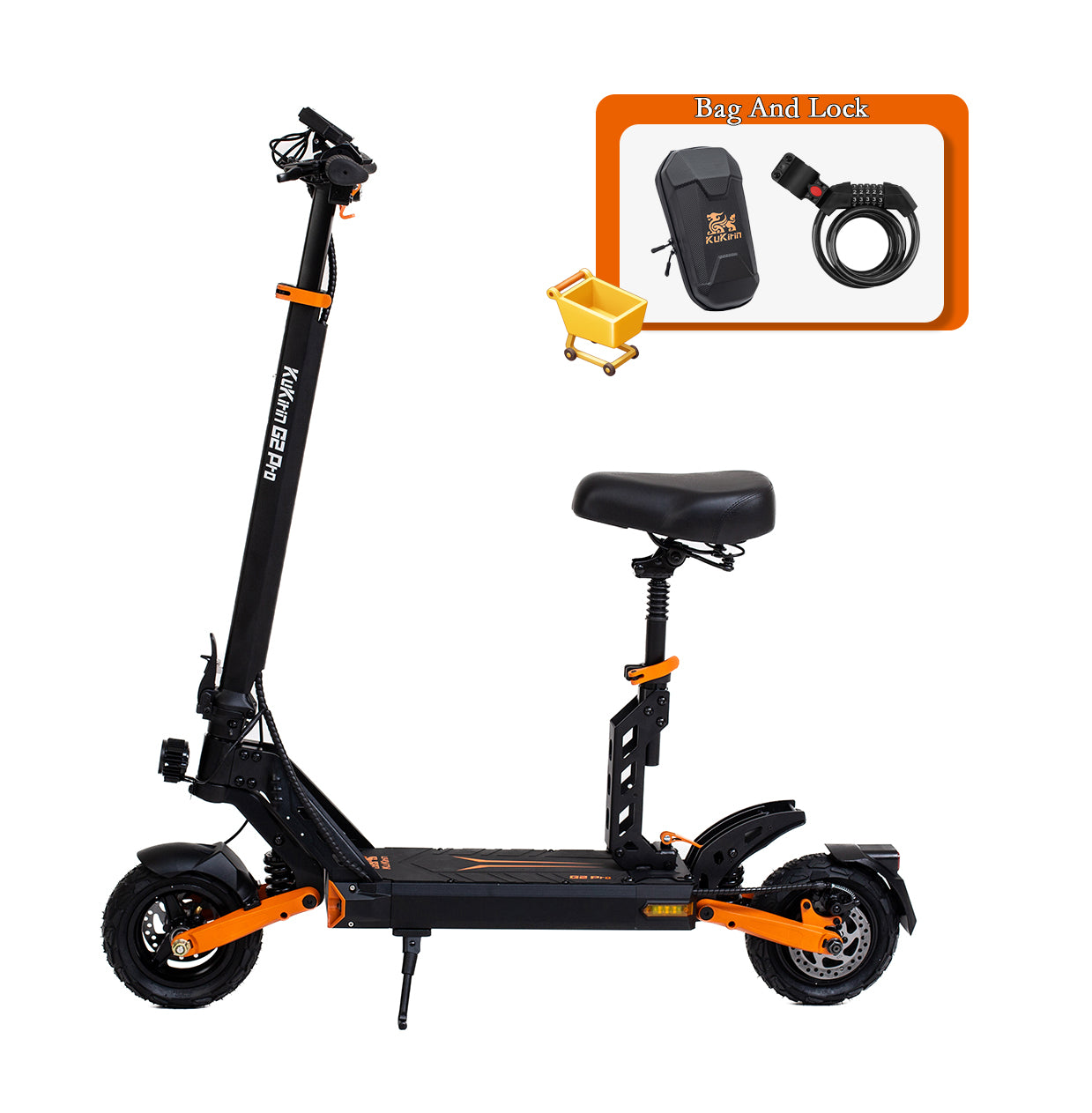

KuKirin (Kugoo Kirin) G2 Pro (2024 Version)Electric Scooter

€509,00
€999,00

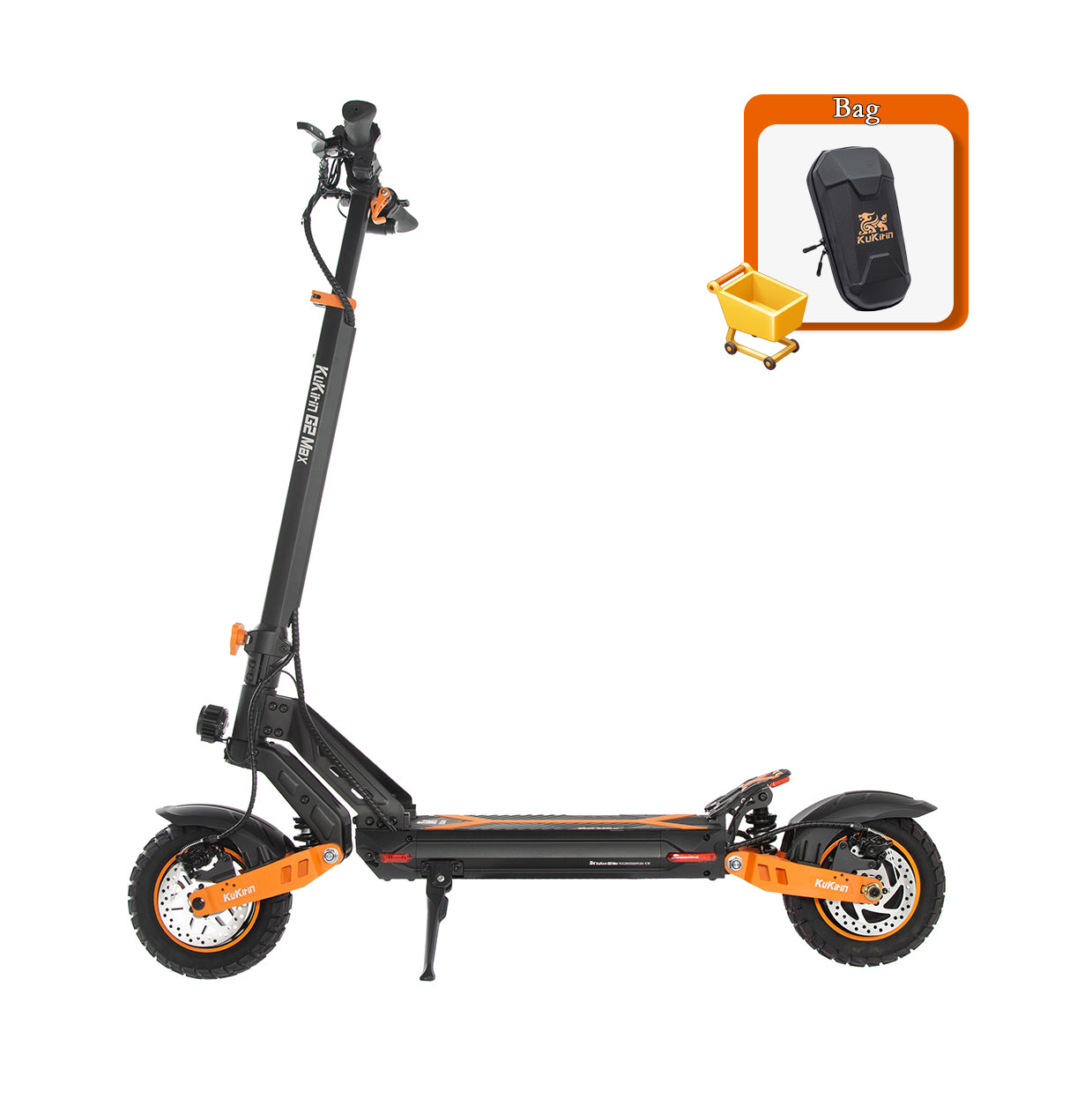

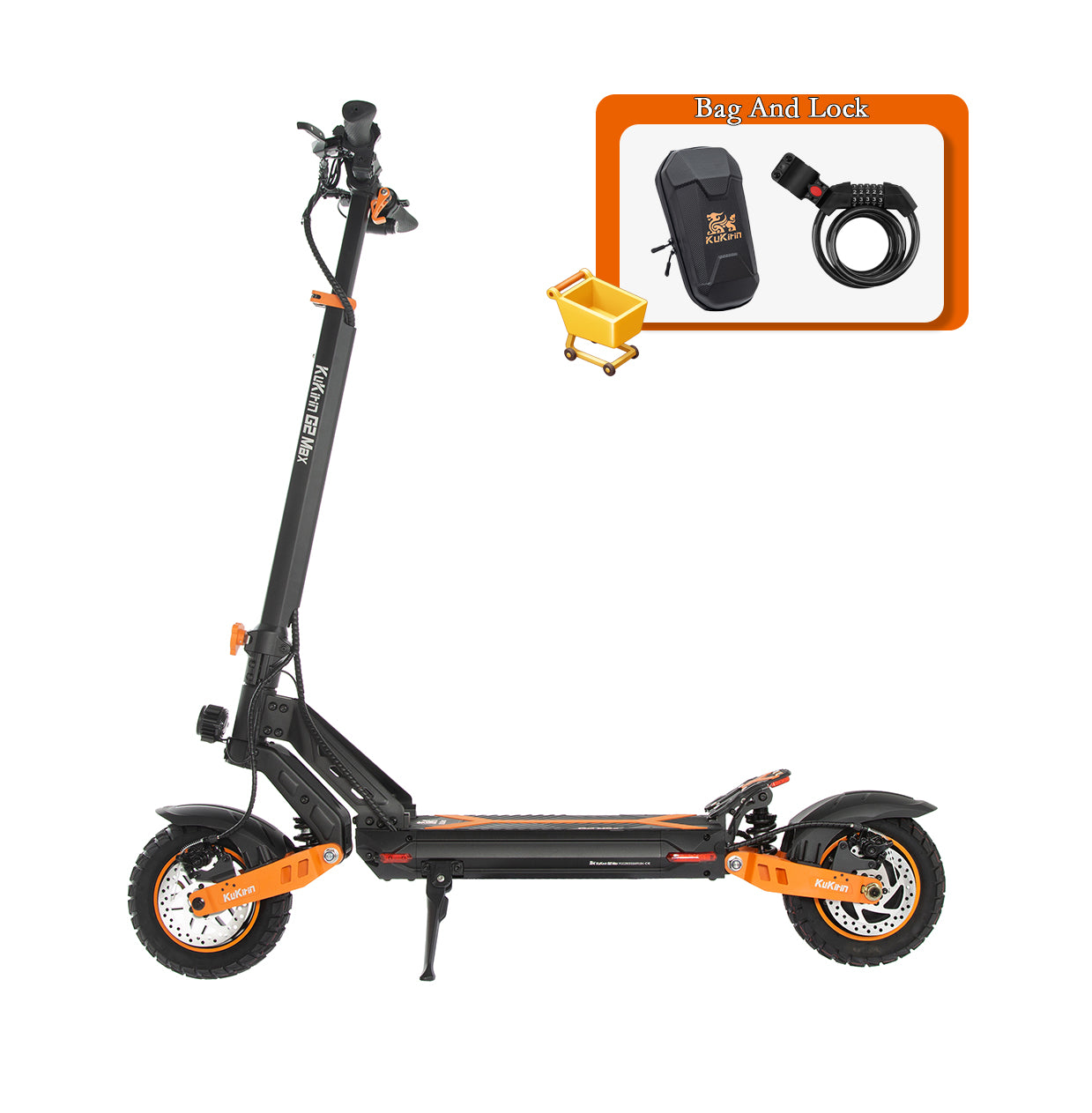

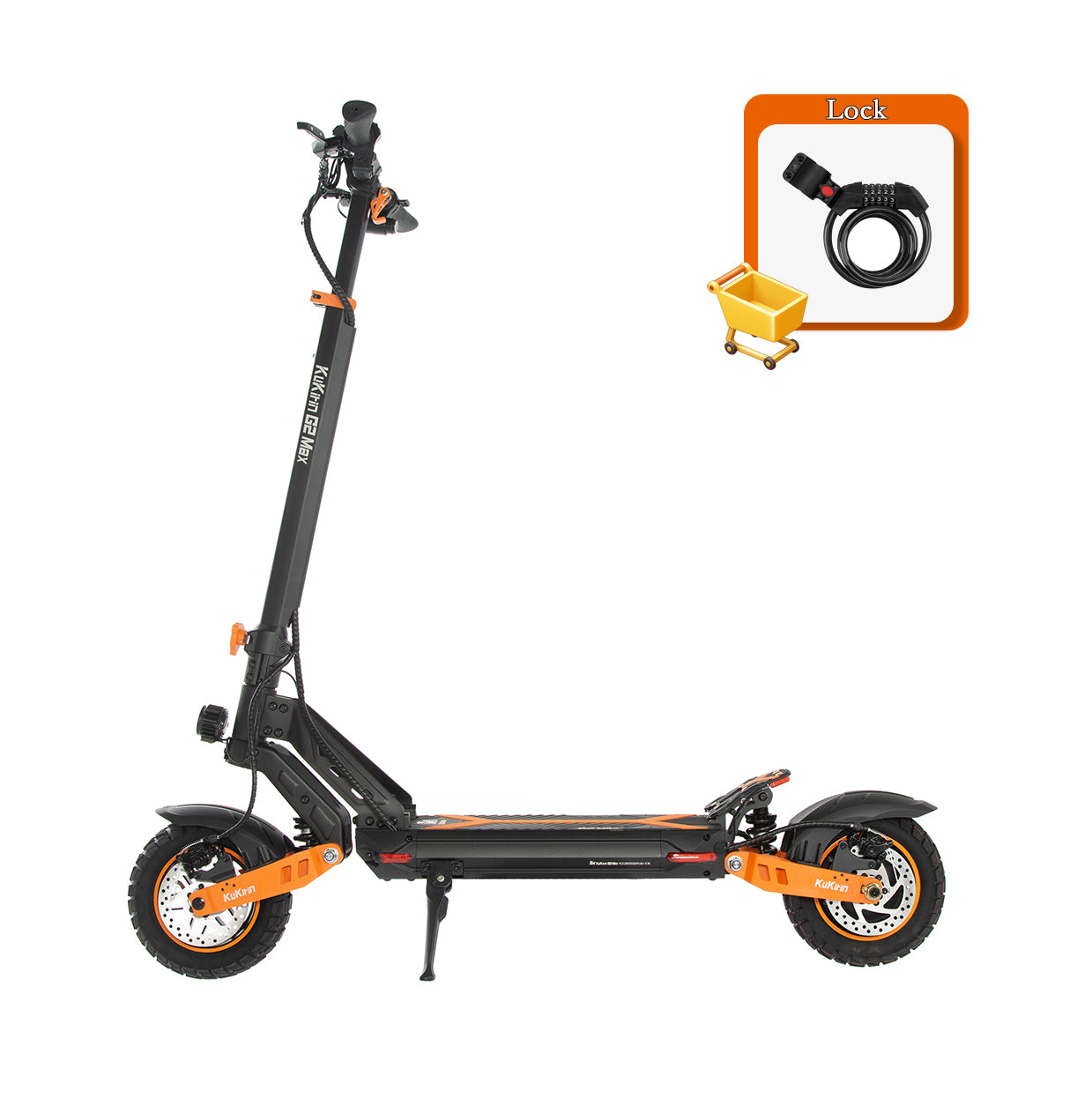

KuKirin (Kugoo Kirin) G2 Max Electric Scooter

€709,00
€1.099,00

Error Codes-KuKirin G2 Pro/ KuKirin G2 Max

E-001: Hall Sensor Fault

  • Unplug and reconnect the motor connectors. If the error persists, consider replacing the motor. If the error continues after replacing the motor, replace the controller.

E-002: Throttle Fault

  • Unplug and reconnect the throttle connector.

E-003: Controller Fault

  • Replace the controller.

E-005: Battery Under Voltage Fault

  • Have the customer plug in the charger to see if it charges normally. If so, advise charging for over 10 hours and then check the voltage. If it doesn’t charge, replace the charger first.

E-006: Instrument Reception Fault

  • Unplug and reconnect the main harness connector. If the issue remains, replace the controller.

E-007: Instrument Sending Fault

  • Unplug and reconnect the main harness and instrument connectors. If the problem persists, replace the instrument.

E-009: Controller Over Temperature Protection

  • Instruct the customer to power off the scooter, let it cool for a moment, and then turn it back on to clear the error.

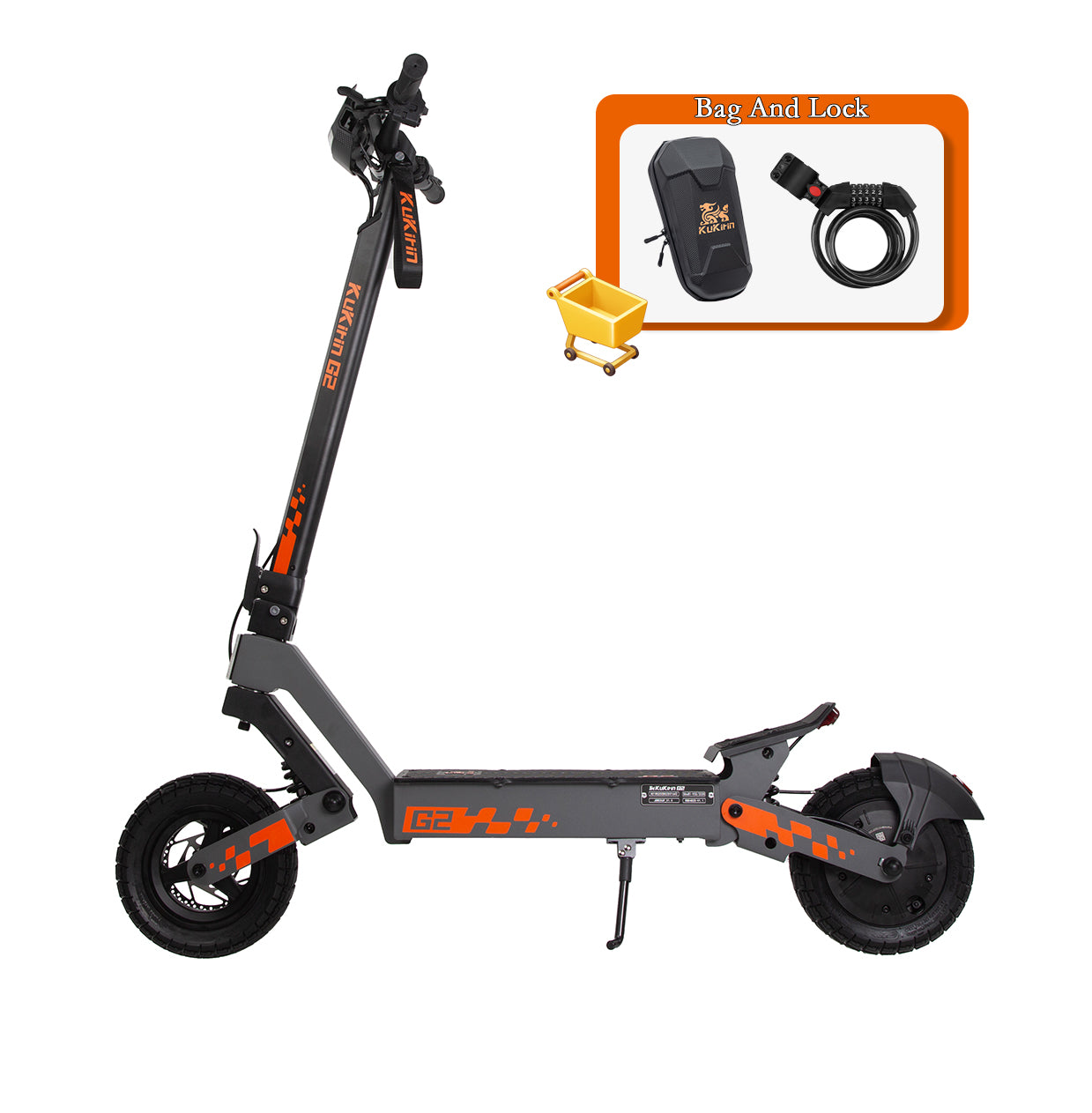

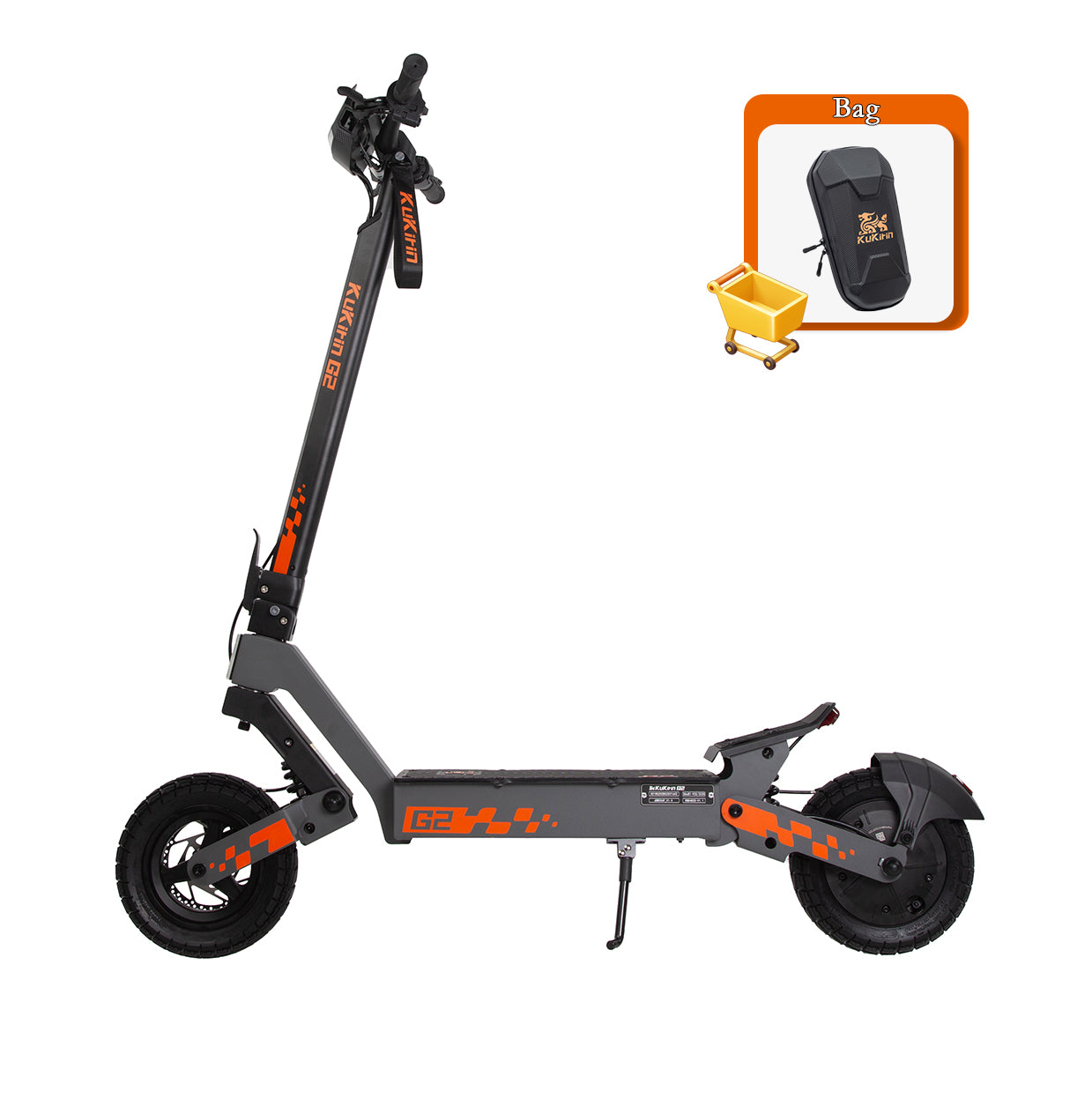

KuKirin(Kugoo Kirin) 2024 G2 Electric Scooter

€479,00
€569,00

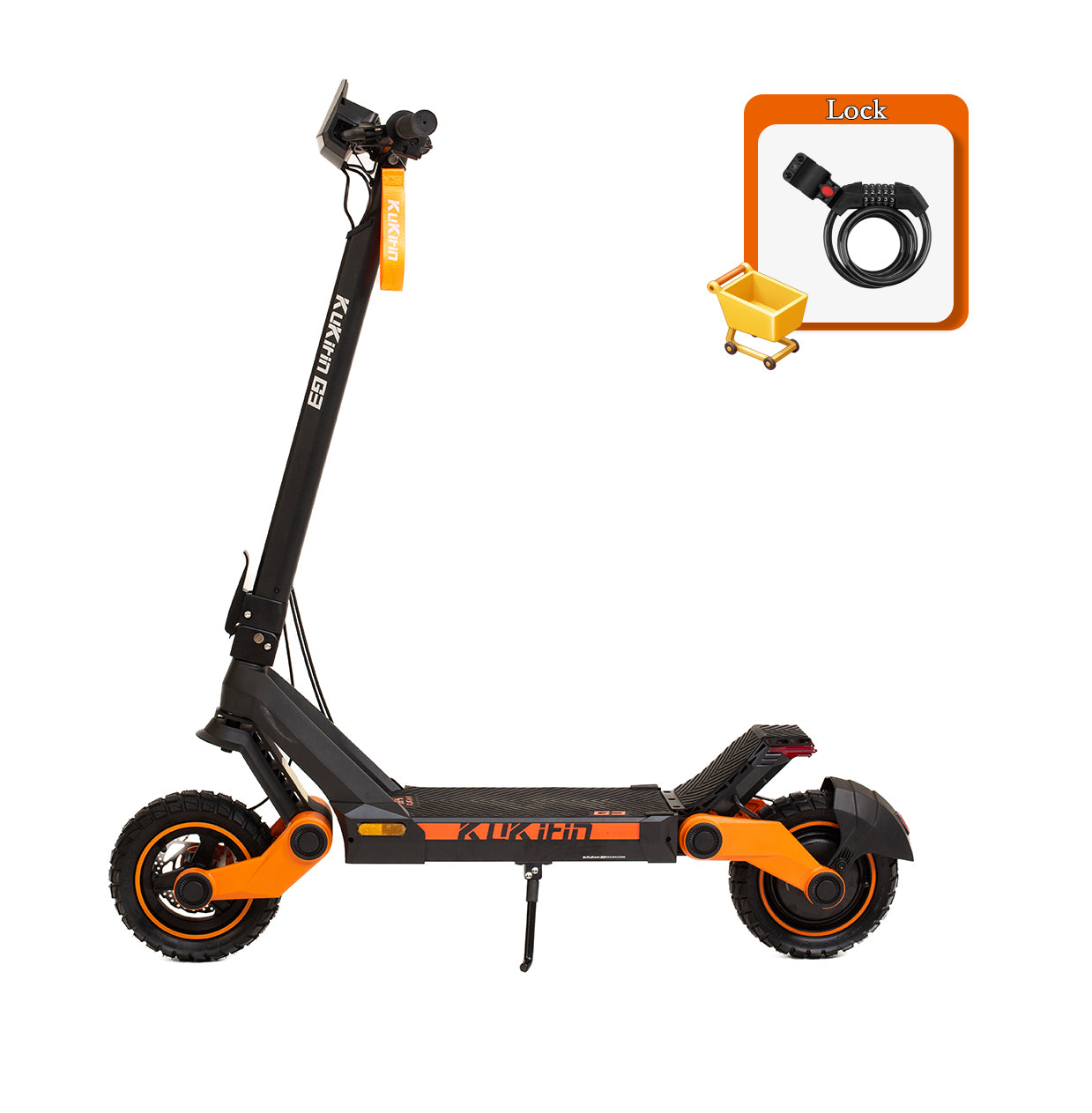

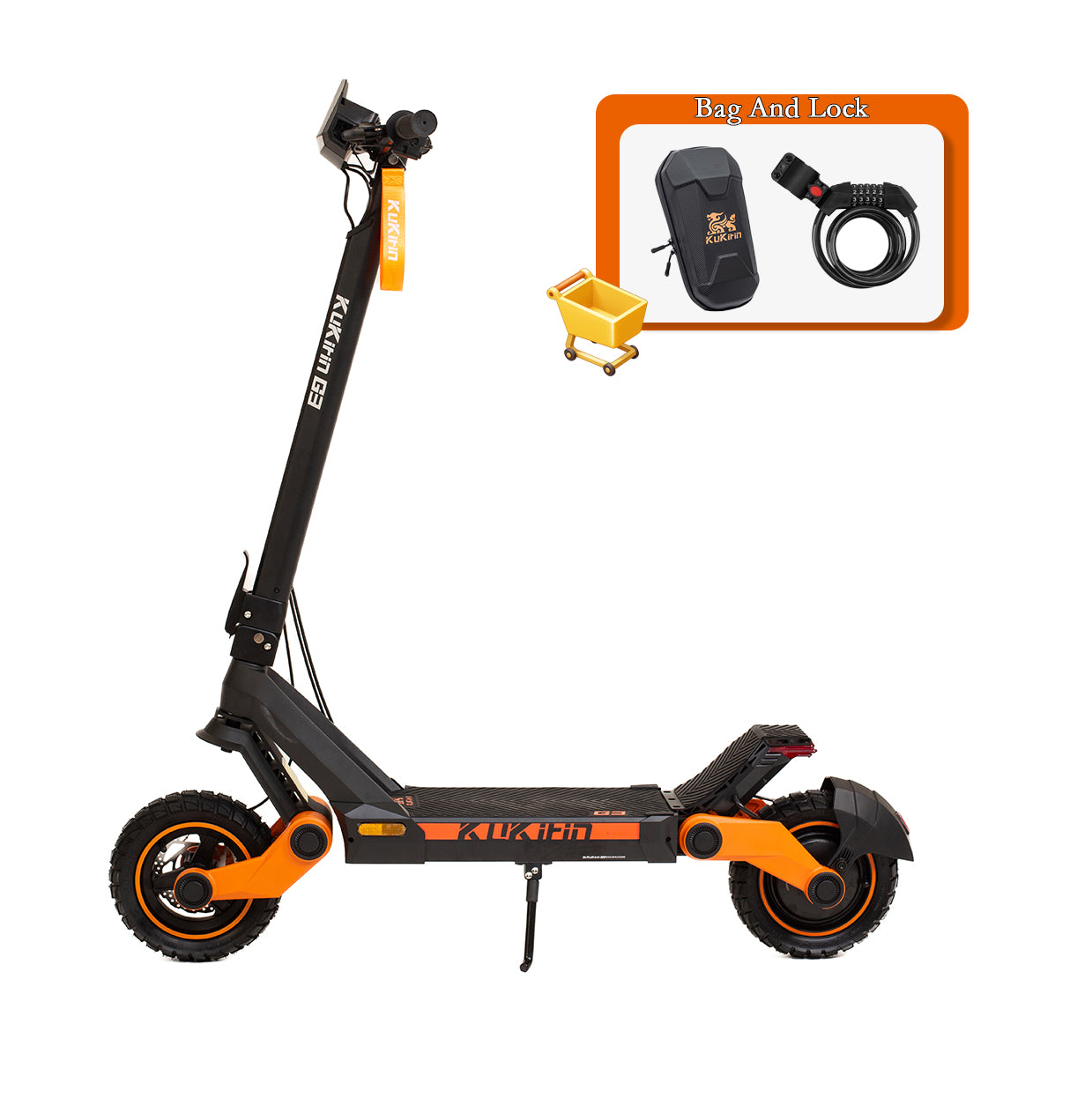

KuKirin (Kugoo Kirin) G3 Electric Scooter

€659,00
€1.329,00

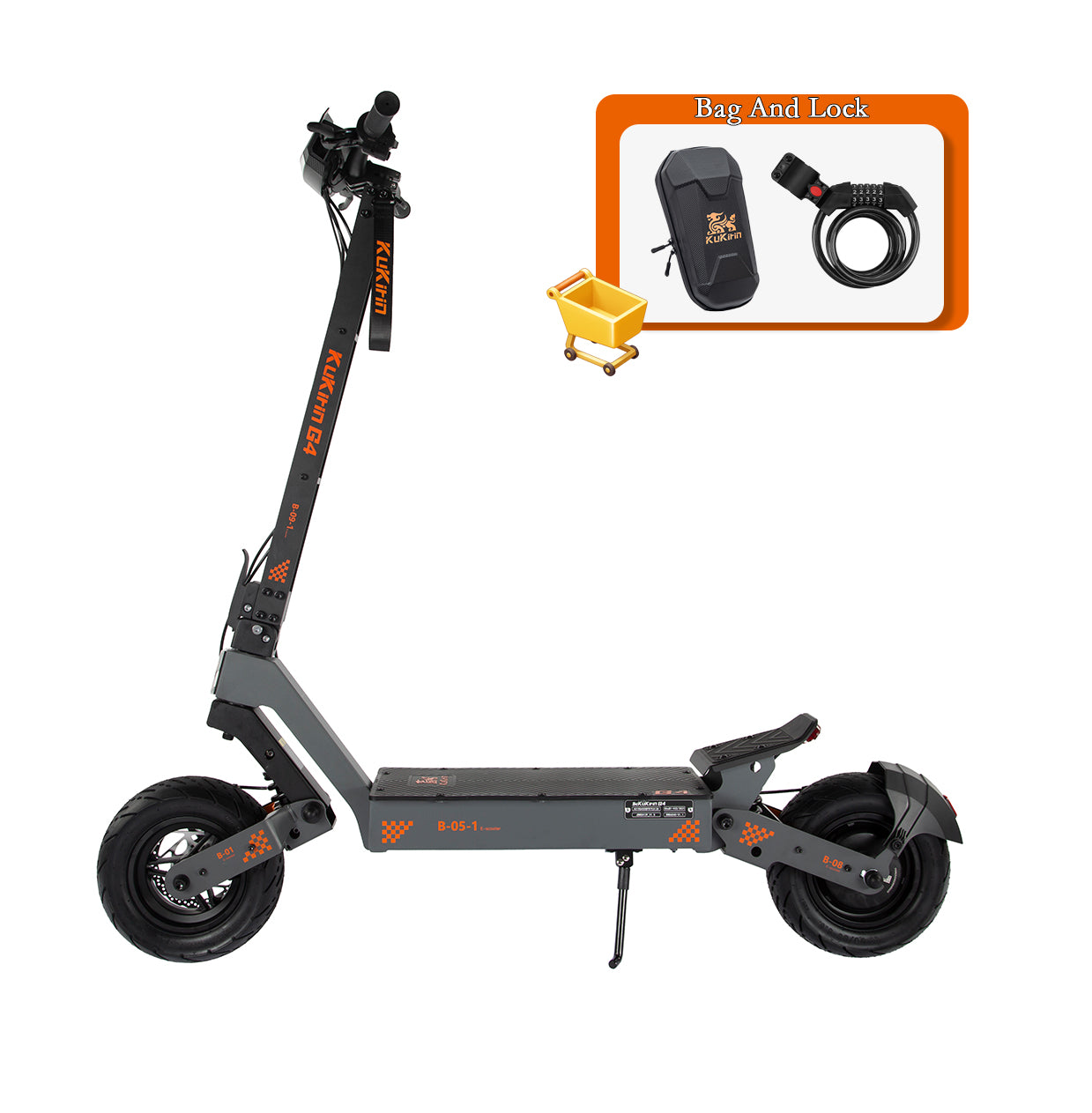

KuKirin (Kugoo Kirin) G4 Electric Scooter

€849,00
€1.799,00

Error Codes- KuKirin G2/KuKirin G3/KuKirin G4

E-7: Hall Sensor Fault

  • Unplug and reconnect the motor wires. If the error persists, replace the motor. If the error continues after replacing the motor, replace the controller.

E-6: Serial Communication Fault

  • Unplug and reconnect the main harness. If that doesn’t resolve the issue, replace the main harness. If the error still occurs, replace the controller.

E-5: Brake Fault

  • Unplug and reconnect the brake lever connector. If the error remains, replace the brake lever.

E-4: Throttle Fault

  • Unplug and reconnect the throttle connector. If the issue continues, replace the throttle.

E-3: Controller Fault

  • Unplug and reconnect the main harness. If the error persists, replace the controller.

E-2: Under Voltage Fault

  • Instruct the customer to connect the charger and fully charge the battery. If the error remains, replace the battery. If the charger indicator doesn’t change from red to green, replace the charger.

E-1: Over Voltage Fault

  • Have the customer let the scooter sit for two days. If the error still appears, connect to the reset software for troubleshooting.

E-0: Stalling Fault

  • Ensure the wheels are free from obstructions, then restart the scooter.

Conclusion

By understanding these KuKirin scooter error codes, you can tackle most issues quickly and keep your rides smooth. While some fixes are simple, like reconnecting cables, others might need parts replaced or professional help. Regular maintenance and addressing issues as they come up will help keep your scooter in top shape. Now you’re ready to handle common errors and enjoy worry-free rides!

Frequently Asked Questions

1. What should I do if I see an error code not listed here?

If you encounter an error code that isn’t covered in this guide, contact customer support for assistance. They can provide specific guidance based on your model.

2. Can I fix these issues myself, or do I need a professional?

Many issues can be fixed by following the steps in this guide, such as reconnecting cables or charging the battery. However, if the problem persists or requires replacing parts like the controller or motor, it may be best to seek professional help.

3.What should I do if the error reappears after fixing it?

If an error reoccurs after attempting the recommended fixes, it could indicate a deeper issue with your scooter. Consider taking it to a certified repair shop for a thorough inspection.

4.Will fixing these errors void my warranty?

Simple troubleshooting steps, like reconnecting cables or charging, typically won’t affect your warranty. However, if you need to replace parts, check your warranty terms or contact KuKirin support to ensure coverage.
